Top Total Chlorine Analyzer for Water Drainage

Product Overview

1) Product overview

Product Features

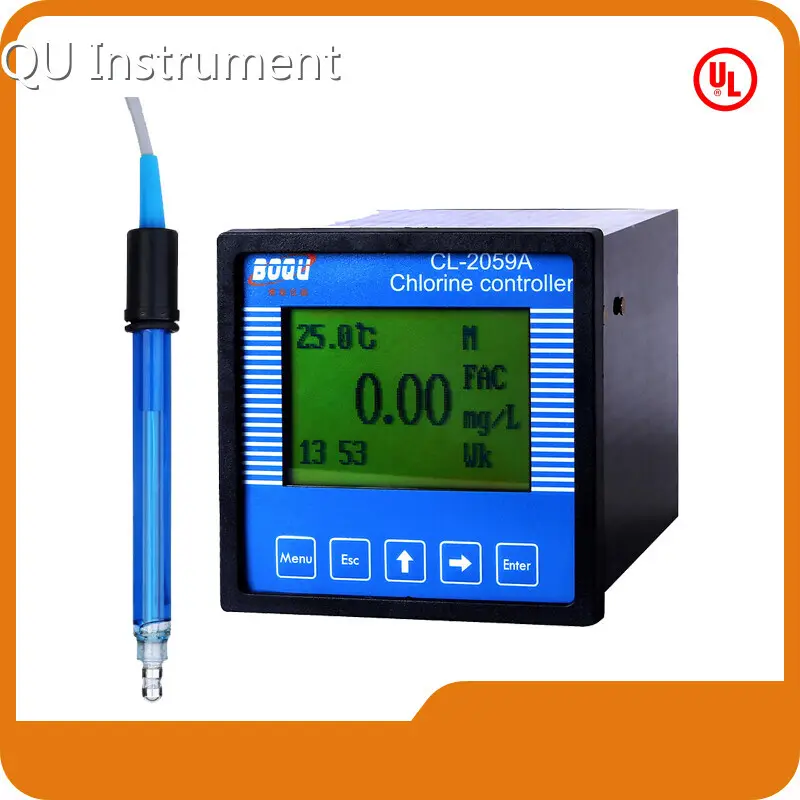

The CL-2059A Top Total Chlorine Analyzer (BOQU) is an industrial online residual/total chlorine monitor designed for continuous, real?time measurement of chlorine and temperature in water drainage and other process waters. Developed with advanced core technologies and R&D improvements, it is a compact panel?mounted analyzer built for reliable field use.

Product Value

2) Product features

Product Advantages

- Simultaneous measurement of total/residual chlorine and temperature.

Application Scenarios

- High sensitivity: measuring ranges up to 20.00 mg/L (and option to 100.00 mg/L) with 0.01 mg/L resolution and 0.01 mg/L minimum detection.

- Accurate and stable: chlorine accuracy better than ±1% or ±0.01 mg/L; temperature accuracy ±0.5 °C; repeatability/stability ±0.01 mg/L.

- Automatic temperature compensation (0–50 °C).

- Hardware?isolated high/low alarms with configurable hysteresis and selectable alarm parameters.

- User-friendly menu, multi?screen display options, and chlorine zero/slope calibration.

- Outputs: isolated 4–20 mA (selectable parameters), optional RS485 communication, alarm relay outputs (AC220V or 24VDC).

- Rugged build with waterproof/dustproof sealing; panel/opening type installation (96×96×118 mm).

3) Product value

The analyzer delivers continuous, accurate chlorine monitoring that helps ensure regulatory compliance, protect public health and the environment, and optimize disinfection control. By providing real?time data and remote output options (4–20 mA, RS485), it reduces manual sampling, supports process automation, prevents over/under?dosing of disinfectants, and lowers operational risk and cost.

4) Product advantages

- Built on advanced core technologies with strong R&D backing for reliable performance.

- High precision and low detection limits suitable for critical monitoring tasks.

- Flexible, independent channel configuration and hardware?isolated alarms for secure, customizable control.

- Easy operation with clear calibration and multiple display modes.

- Robust, sealed design for harsh field environments and straightforward panel installation.

- Multiple output and communication options for easy integration into control and monitoring systems.

5) Application scenarios

- Water drainage and wastewater treatment plant monitoring (effluent discharge compliance).

- Municipal drinking water and running water distribution systems.

- Water purification and industrial pure water systems.

- Thermal power plant and industrial process water monitoring.

- Pharmaceutical water systems and swimming pool disinfection control.

- Any application requiring continuous total/residual chlorine and temperature monitoring and remote data integration.
