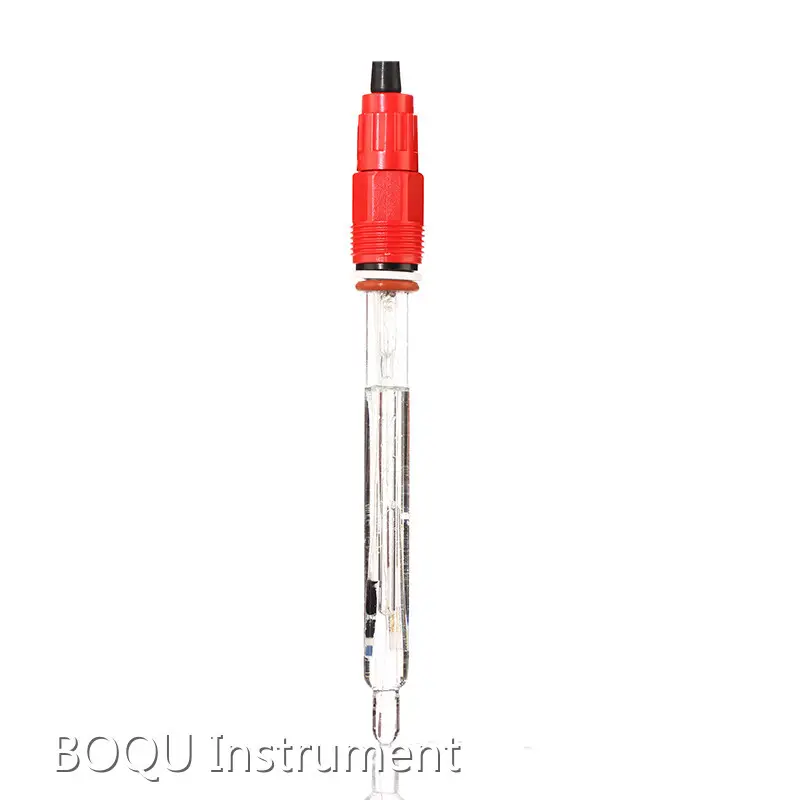

PH/ORP Sensor Ph Electrode Supply
Product Overview
- PH/ORP Sensor Ph Electrode Supply (model PH5806/5M) by BOQU is a high?temperature, sanitary pH electrode designed for in?situ measurement in demanding industrial processes.
- Measures 0.0–14.0 pH with ±0.1 pH accuracy; built for continuous operation up to 130°C and up to 6 bar (0.6 MPa) pressure.
- Available in multiple insertion lengths (12 mm × 120/150/225/325 mm) and with PT1000 temperature compensation (customizable).
Product Features
- Hygienic design certified for sanitary applications (FDA) and compatible with CIP/SIP cleaning and sterilization cycles.
- Double liquid junction with heat?resistant gel and solid dielectric for stability at high temperature and rapid media changes.
- Options for liquid, gel or polymer reference solutions to balance accuracy and lifespan.
- Direct compatibility/replaceability with major brands (e.g., Mettler Toledo, Hamilton).
Product Value
- Enables reliable, continuous pH monitoring in high?temperature and aseptic processes, reducing process interruptions and downtime.
- Improves regulatory compliance and traceability in pharmaceutical, biotech and food/beverage production due to sanitary construction and robustness to CIP/SIP.
- Flexible reference and modular design extend service life and lower total cost of ownership.
Product Advantages
- True high?temperature capability (usable through 130°C sterilization) with minimal extra maintenance.
- Robust pressure rating and construction for direct installation in tanks and reactors.
- Plug?and?play replacement potential with major OEM electrodes simplifies sourcing and service.
- Built?in temperature compensation and multiple reference options maximize measurement stability and accuracy.
Application Scenarios
- Fermentation tanks and bioreactors in biotech and pharmaceutical manufacturing.
- Food and beverage production lines requiring aseptic CIP/SIP processes (dairy, brewing, beverage, starch processing).
- Industrial tanks, reactors and processes with high temperatures and pressure where continuous pH monitoring is needed.
