For Hospital Sensor Ph by BOQU
Product Overview

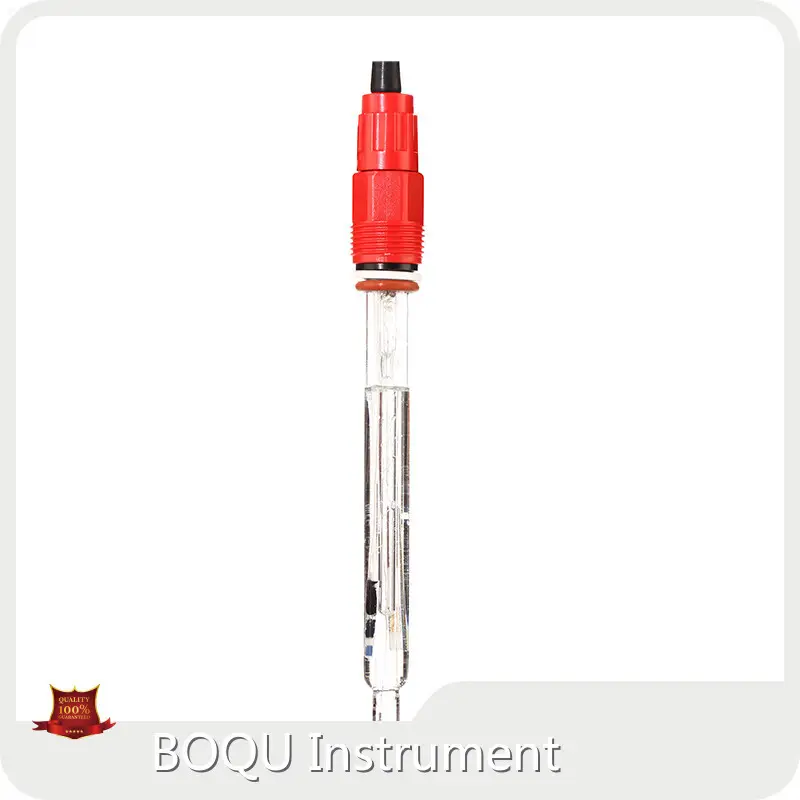

- Model: PH5806/5M High Temperature pH Sensor from BOQU (Shanghai Boqu Instrument Co., Ltd.).
- A hygienic, high-temperature pH electrode designed for in-situ cleaning (CIP) and in-situ sterilization (SIP) environments. Engineered for aseptic and industrial processes where high temperature and fast media changes occur.
Product Features
- Measurement range 0.0–14.0 pH with accuracy ±0.1 pH. Max temperature 130°C and max pressure 6 bar (0.6 MPa).
- Double-junction design using heat-resistant gel dielectric and solid dielectric, with options for liquid, gel or polymer reference solutions.
- Temperature compensation via PT1000 (customizable). Available lengths/diameters: ?12 mm × 120/150/225/325 mm, with leading wire cable.
- FDA-certified sanitary construction and designed for direct use in 130°C sterilization cycles.
Product Value
- Maintains accurate, stable pH measurement through high-temperature sterilization and rapid media transitions, reducing process interruptions.
- Enables regulatory compliance for pharmaceutical, biotech and food/beverage production through hygienic design and sanitary certification.
- Options for reference fill and robust construction extend usable life and reduce calibration/maintenance frequency, lowering total cost of ownership.
Product Advantages
- High-quality, field-replaceable electrode that can substitute comparable Mettler Toledo and Hamilton sensors.
- Low maintenance requirement (no extra dielectric needed) and robust high-temperature/high-pressure tolerance for tank and reactor installations.
- Built with proprietary high-temperature technology and backed by BOQU’s specialized facilities and service network.
Application Scenarios
- Fermentation tanks, bioreactors and other biotechnology/pharmaceutical process vessels subject to CIP/SIP.
- Food & beverage processing, starch paste production and other industrial processes requiring hygienic, high-temperature pH monitoring.
- Tank and reactor installations where high pressure, sterilization, and sanitary compliance are required.
