BOQU Conductivity Electrode Conductivity Electrode Factory Price

Product Overview

- Product overview

Product Features

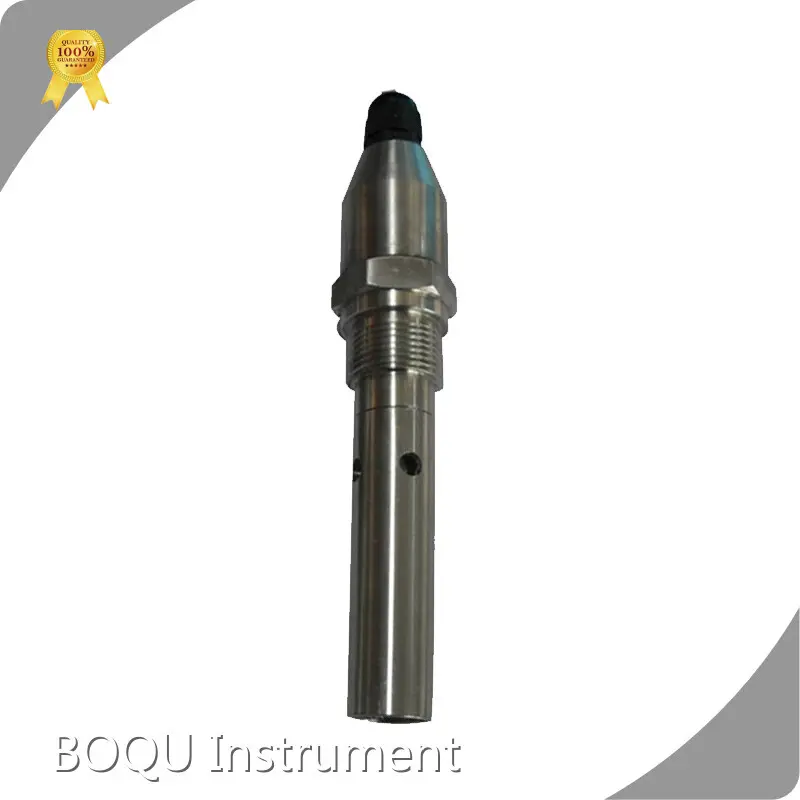

- BOQU DDG series industrial online conductivity electrode (model DDG-0.01/0.1/1.0). Designed for continuous conductivity measurement of ultra?pure water, pure water and industrial process waters. Offered as a factory-priced, industrial-grade sensor from Shanghai Boqu Instrument Co., Ltd.

Product Value

- Product features

Product Advantages

- Electrode cell constants: 0.01, 0.1, 1.0 (selectable to match conductivity ranges).

Application Scenarios

- Measuring ranges: 0–20 μS/cm, 0–200 μS/cm, 0–2000 μS/cm.

- Construction: double?cylinder structure; materials: SS316L or titanium alloy (titanium forms a chemical passivation layer).

- Chemical resistance: conductive surface resistant to most liquids except hydrofluoric acid; K=10 or K=30 versions use large?area platinum electrodes for strong acid/alkali resistance and anti?fouling.

- Temperature compensation options: NTC 2.252K, 2K, 10K, 20K, 30K, Pt100, Pt1000 (user-specified).

- Mechanical: 1/2" or 3/4" NPT connections; working pressure up to 0.6 MPa.

- Product value

- Reliable, continuous online conductivity measurement suited to process control and quality assurance in water systems.

- Wide dynamic range and selectable cell constants allow accurate measurement from ultra?pure to higher conductivity waters with reduced calibration complexity.

- Durable materials and platinum electrodes lower maintenance and downtime in harsh or fouling environments, improving operational efficiency and lifecycle cost.

- Product advantages

- Robust material choices (titanium/SS316L, platinum) for corrosion resistance and long service life.

- Flexible temperature compensation options for accurate readings across applications.

- Specialized design (double?cylinder, anti?infiltration surface) reduces contamination and improves stability.

- Produced under rigorous quality control by BOQU with experienced R&D and production teams—offered at factory pricing for cost competitiveness.

- Application scenarios

- Ultra?pure and pure water monitoring (e.g., semiconductor, pharmaceutical).

- Water treatment plants and process water control.

- Thermal power plant condensate and boiler water monitoring.

- Sewage treatment and wastewater monitoring.

- Seawater purification/desalination and other corrosive or high?fouling industrial water applications.
